X-43A Demonstrator Tutorial#

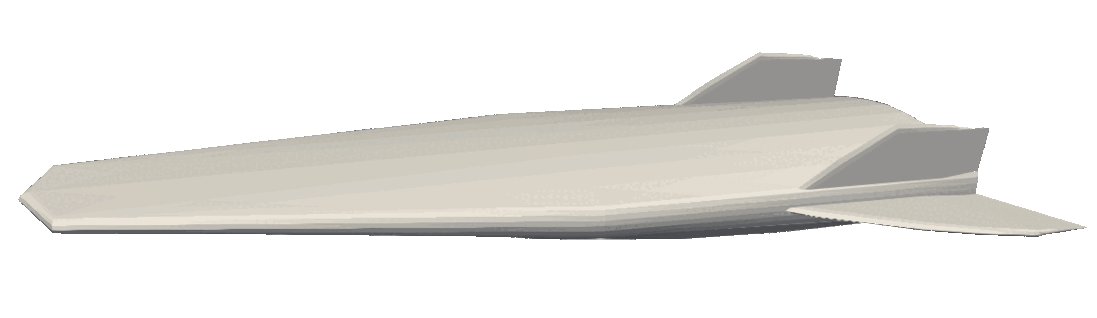

This page covers how to build a parametric model resembling the X-43A flight demonstrator.
Package Imports#
Begin by importing all the required parackages and modules.
import numpy as np
from hypervehicle import Vehicle
from hypervehicle.components import Wing, Fin, common
from hypervehicle.geometry import Vector3, Bezier, Line, Polyline
Geometric Parameters#
Next, let’s define some parameters which will be used to construct the components of the vehicle. These can be hard coded (as below) or treated as variables and loaded in dynamically.
# Geometric parameters
body_length = 3.7 # From body rear to nose
body_width = 1 # Body width
body_angle = 0 # Body slant angle (+ve nose down) (degrees)
wing_span = 0.4 # Span of each wing
wing_length = 1.00 # Wing length
wing_TE_back = 0.25
flap_length = 0.3 # Flap length
engine_h = 0.1 # Height of engine section
fin_height = 0.3 # Height of tail fin
fin_length = 1.0 # Length of fin
rudder_length = 0.2 # Length of tail fin rudder
# Configuration parameters
flap_angle = 0 # Elevon angle (+ve up) (degrees)
rudder_angle = 0 # Rudder angle (+ve to +y) (degrees)
Vehicle Construction#
Now we can begin constructing the vehicle.
Instantiation#
First, create an instance of Vehicle, the
hypervehicle component aggregation class. We can add
each component to this vehicle instance, “stacking” them
as we go.
# Create Vehicle instance
x43 = Vehicle()
x43.configure(name="X-43A", verbosity=1)
Body Geometry#
The body of the vehicle is created from a wing component type.
# WING 1
# B0------------------------ B1
# | ---___
# | ---__ B2
# | |
# A0-------------------------A1---------------TT
# Define nominal parameters
L_nom = 3.7
L = body_length
beta = np.deg2rad(body_angle)
LE_height = 0.05 * L / L_nom
TE_height = 0.2 * L / L_nom
A0 = Vector3(x=0, y=0)
A1 = Vector3(x=1.8 * L / L_nom, y=0)
TT = Vector3(x=L, y=0)
B0 = Vector3(x=0, y=body_width / 2)
B1 = Vector3(x=A1.x, y=B0.y)
B2 = Vector3(x=TT.x, y=0.4 * B0.y)
B0B1 = Line(p0=B0, p1=B1)
B1B2 = Line(p0=B1, p1=B2)
B2TT = Line(p0=B2, p1=TT)
Line_B0TT = Polyline([B0B1, B1B2, B2TT])
# Top rounding Bezier points
rounding_thickness = 0.025
p1 = Vector3(x=0, y=0, z=rounding_thickness)
p2 = Vector3(x=0, y=0.9 * B0.y, z=p1.z)
p3 = Vector3(x=0, y=B0.y, z=0)
rounding_bez = Bezier([p1, p2, p3])
def get_local_y(x):
if x < B1.x:
local_y = B0.y
else:
local_y = (x - B2.x) * (B2.y - B1.y) / (B2.x - B1.x) + B2.y
return local_y
def wing1_tf_top(x, y, z=0):
# Nominal thickness
z_m = -L * np.tan(beta)
z_u = z_m - 0.5 * TE_height
beta_u = -np.arctan((z_u + 0.5 * LE_height) / L)
z_1 = (x - L) * np.tan(beta_u) - LE_height / 2
# Rounding thickness
local_y = get_local_y(x)
z_2 = -(L - x) * rounding_bez(y / local_y).z
# Sum
z_val = z_1 + z_2
return Vector3(x=0, y=0, z=z_val)
def wing1_tf_bot(x, y, z=0):
z_m = -L * np.tan(beta)
z_l = z_m + 0.5 * TE_height
beta_l = -np.arctan((z_l - 0.5 * LE_height) / L)
z_val = (x - L) * np.tan(beta_l) + LE_height / 2
return Vector3(x=0, y=0, z=z_val)
def leading_edge_width_function(r):
temp = Bezier(
[Vector3(x=0.0, y=0.02), Vector3(x=0.75, y=0.05), Vector3(x=1.0, y=0.05)]
)
le_width = temp(r).y
return le_width
# Define the body component
body = Wing(
A0=A0,
A1=A1,
TT=TT,
B0=B0,
Line_B0TT=Line_B0TT,
top_tf=wing1_tf_top,
bot_tf=wing1_tf_bot,
LE_wf=leading_edge_width_function,
)
Wing Geometry#
Next, construct the wings using another Wing component.
# fB0--__fB1
# \ \_
# \ \
# B0-----fTT----------------- B1
# | ---___
# | ---__ B2
# | |
# A0-------------------------A1---------------TT
flap_thickness = 0.03 * L / L_nom
fflap_angle = np.deg2rad(-flap_angle)
fA0 = Vector3(x=B0.x + flap_length, y=B0.y)
fA1 = Vector3(x=A0.x + 0.5 * wing_length, y=get_local_y(A0.x + 0.5 * wing_length))
fTT = Vector3(x=A0.x + wing_length, y=get_local_y(A0.x + wing_length))
fB0 = Vector3(x=A0.x - wing_TE_back + flap_length, y=B0.y + wing_span)
fB1 = Vector3(x=A0.x + 0.4 * wing_length, y=B0.y + 0.75 * wing_span)
fB0B1 = Line(p0=fB0, p1=fB1)
fB1TT = Line(p0=fB1, p1=fTT)
Line_fB0TT = Polyline([fB0B1, fB1TT])
def wing2_tf_top(x, y, z=0):
z_ba = -(x - L) * np.tan(beta)
return Vector3(x=0, y=0, z=-flap_thickness / 2 - z_ba)
def wing2_tf_bot(x, y, z=0):
z_ba = -(x - L) * np.tan(beta)
return Vector3(x=0, y=0, z=flap_thickness / 2 - z_ba)
# Define the wing component
wing = Wing(
A0=fA0,
A1=fA1,
TT=fTT,
B0=fB0,
Line_B0TT=Line_fB0TT,
top_tf=wing2_tf_top,
bot_tf=wing2_tf_bot,
flap_length=flap_length,
flap_angle=flap_angle,
LE_wf=leading_edge_width_function,
)
Inlet Geometry#
The inlet is also defined by a Wing component.
# B0------------------------ B1
# | --__
# | --_ B2
# | |
# A0-------------------------A1-----------TT
iA0 = A0
iA1 = A1
iTT = Vector3(x=0.5 * (TT.x + B1.x), y=0)
iB0 = Vector3(x=B0.x, y=B0.y)
iB1 = Vector3(x=B1.x, y=B1.y)
iB2 = Vector3(x=iTT.x, y=((iTT.x - B2.x) * (B2.y - B1.y) / (B2.x - B1.x) + B2.y))
iB0B1 = Line(p0=iB0, p1=iB1)
iB1B2 = Line(p0=iB1, p1=iB2)
iB2TT = Line(p0=iB2, p1=iTT)
Line_iB0TT = Polyline([iB0B1, iB1B2, iB2TT])
inlet_start = 0.8 * B1.x
exit_start = 0.3 * (B1.x - B0.x)
def inlet_tf_top(x, y, z=0):
vehicle_z = wing1_tf_bot(x, y, z).z
return Vector3(x=0, y=0, z=vehicle_z - 0.05)
def inlet_tf_bot(x, y, z=0):
# Get z-location of vehicle body
vehicle_body = wing1_tf_bot(x, y, z).z
if x < exit_start:
z_val = (engine_h / (exit_start - A0.x)) * x
elif x > inlet_start:
z_val = (-engine_h / (iTT.x - inlet_start)) * (x - iTT.x)
else:
z_val = engine_h
# Calculate taper z
taper_start_pc = 0.8 # Percentage of y_local where taper begins
y_local = get_local_y(x)
if y > taper_start_pc * y_local:
z_taper = (5 * y / y_local - 4) * z_val
else:
z_taper = 0
return Vector3(x=0, y=0, z=z_val + vehicle_body - z_taper + 0.00001)
def leading_edge_width_function2(r):
temp = Bezier(
[Vector3(x=0.0, y=0.001), Vector3(x=0.5, y=0.001), Vector3(x=1.0, y=0.001)]
)
le_width = temp(r).y
return le_width
# Define inlet component
inlet = Wing(
A0=iA0,
A1=iA1,
TT=iTT,
B0=iB0,
Line_B0TT=Line_iB0TT,
top_tf=inlet_tf_top,
bot_tf=inlet_tf_bot,
LE_wf=leading_edge_width_function2,
)
Fin Geometry#
The final components are the fins. These are created with Fin components.
# |--p1-----p2
# | | \
# | | \
# | | \
# |--p0______________p3
fin_p3x = fin_length
fin_thickness = 0.02 * L / L_nom
fin_offset = -(fin_p3x - L) * np.tan(beta) # offset upwards
y_shift = B0.y
p0 = Vector3(x=rudder_length, y=fin_offset)
p1 = Vector3(x=rudder_length, y=fin_offset + fin_height)
p2 = Vector3(x=0.5 * fin_p3x, y=fin_offset + fin_height)
p3 = Vector3(x=fin_p3x, y=fin_offset)
# Construct p1p3 path
p1p2 = Line(p1, p2)
p2p3 = Line(p2, p3)
p1p3 = Polyline(segments=[p1p2, p2p3])
def fin_offset_function(x, y, z):
return Vector3(x=0, y=y_shift, z=0)
# Define the fin angles: this is the angle to rotate the fin, constructed in
# the x-y plane, to its final position, by rotating about the x axis
fin_angle = np.deg2rad(-90)
# Rudder angle (fin flap)
rudder_angle = np.deg2rad(rudder_angle)
fin1 = Fin(
p0=p0,
p1=p1,
p2=p2,
p3=p3,
fin_thickness=fin_thickness,
fin_angle=fin_angle,
top_thickness_function=common.uniform_thickness_function(fin_thickness, "top"),
bot_thickness_function=common.uniform_thickness_function(fin_thickness, "bot"),
LE_func=leading_edge_width_function,
mirror=False,
rudder_type="sharp",
rudder_length=rudder_length,
rudder_angle=rudder_angle,
pivot_angle=0,
pivot_point=Vector3(x=0, y=0),
offset_func=fin_offset_function,
)
# Make second fin to account for rudder angle
def fin_offset_function2(x, y, z):
return Vector3(x=0, y=-y_shift, z=0)
fin2 = Fin(
p0=p0,
p1=p1,
p2=p2,
p3=p3,
fin_thickness=fin_thickness,
fin_angle=fin_angle,
top_thickness_function=common.uniform_thickness_function(fin_thickness, "top"),
bot_thickness_function=common.uniform_thickness_function(fin_thickness, "bot"),
LE_func=leading_edge_width_function,
mirror=False,
rudder_type="sharp",
rudder_length=rudder_length,
rudder_angle=rudder_angle,
pivot_angle=0,
pivot_point=Vector3(x=0, y=0),
offset_func=fin_offset_function2,
)
Stacking Components#
Now, all of the component defined above can be added to the vehicle
using the Vehicle.add_component() method.
x43.add_component(body, reflection_axis="y")
x43.add_component(wing, reflection_axis="y")
x43.add_component(inlet, reflection_axis="y")
x43.add_component(fin1)
x43.add_component(fin2)
Vehicle Analysis#
After all components have been added to a Vehicle object, the component
patches can be generated using the Vehicle.generate() method.
x43.generate()
STL Generation#
To write the component patches to STL files, use the
Vehicle.to_stl() method.
x43.to_stl(prefix="x43")
Inertial Estimates#
The inertial properties of a vehicle can be also estimated using the STL meshes generated by hypervehicle. This requires providing densities for each component. In the example below, such densities were calculated from the known densities of the X-43A. The result is such that the effective densities multiplied by the component volumes results in the nominal mass of the X-43A.
Adjusting the design parameters will impact the resultant volumes calculated, and so the mass model will be impacted also.
All you need to do is define a densities dictionary, containing the
density of each component of the vehicle, as enumerated in
Vehicle._enumerated_components. Then, use the Vehicle.analyse()
command, as shown below. This will also save the vehicle’s inertial
properties as attributes.
densities = {
"wing_1": 1680,
"wing_2": 5590,
"wing_3": 1680,
"fin_1": 5590,
"fin_2": 5590,
}
volume, mass, cog, inertia = x43.analyse(densities)
